From Eyewears to Crystal Art –UV Laser Marking unlocks Impossible Applications on 50+ Materials
✨ The UV Laser Advantage in 60 Seconds
Why 355nm Wavelength Changes Everything
| Feature | Traditional Laser | UV Laser |
|---|---|---|
| Heat Impact | Melting/Burning | Cold Ablation |
| Minimum Line Width | 0.1mm | 0.015mm |
| Material Flexibility | Metals Only | Glass/Plastic/Ceramics |
Ideal for: Medical implants • Food packaging • Electronics • Luxury goods
🔬 Revolutionizing Material Science
1. Crystal & Glass: Internal 3D Mastery
Technology: Galvo scanning + Dynamic Z-axis focus
Watch the Magic:
▸ No surface damage – beams converge inside material
▸ 20μm voxel precision – 500+ focal planes controlled
▸ Add-on Advantage: Integrates with standard UV markers via 3D module ($2,800 value)
Client Case: Souvenir manufacturer increased premium product line revenue by 140% with personalized crystal gifts

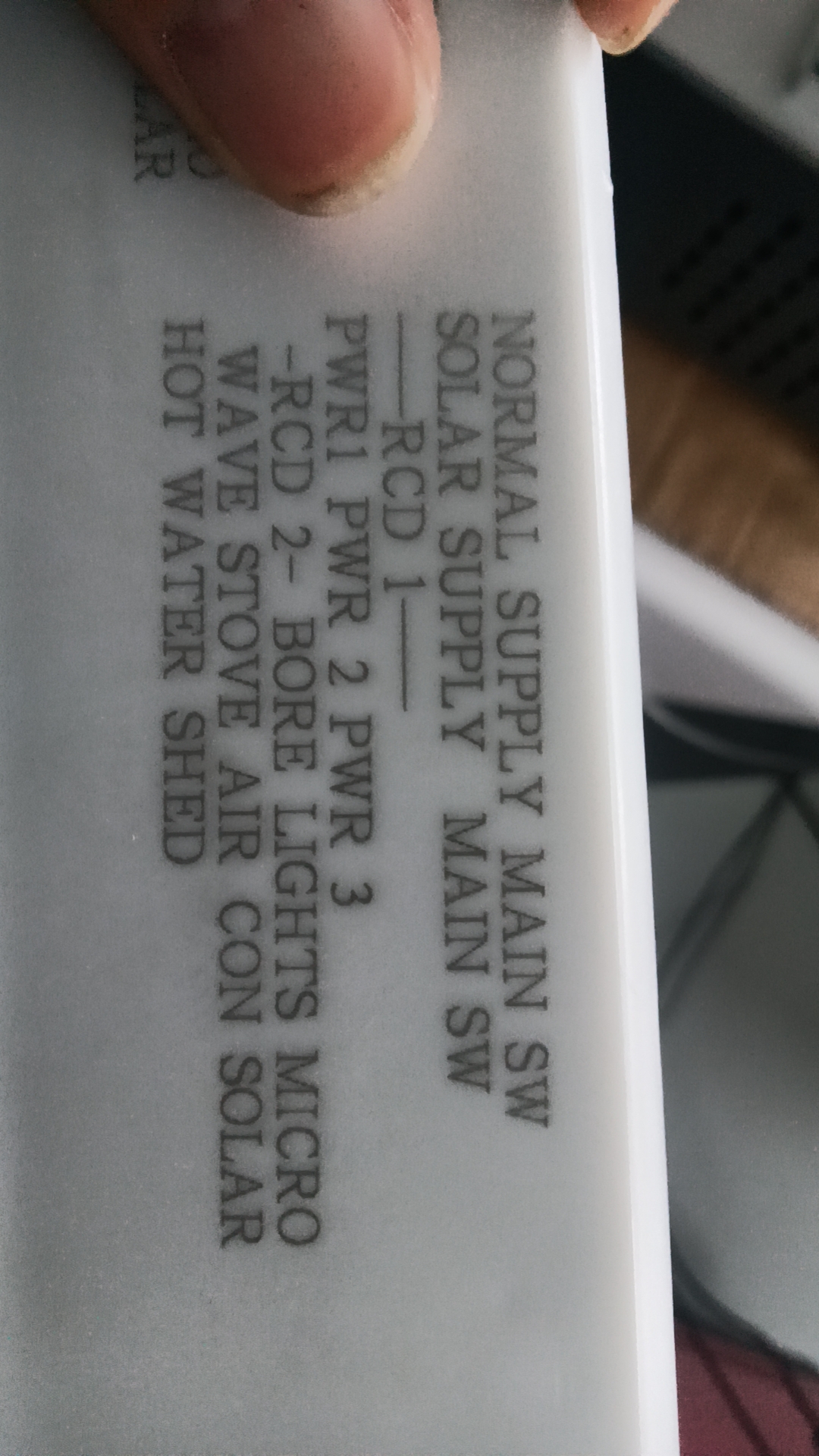

2. Plastic Cases
Breakthrough Applications:
-
Electronics Enclosures: Permanent serial numbers on ABS/PC
-
IoT Devices: QR code direct marking on nylon sensors
-
Consumer Goods: Logo engraving without surface deformation
Technical Superiority:
✓ Zero Melting – Cold ablation preserves material integrity
✓ Chemical Resistance – Withstands alcohol/IPA cleaning
✓ 0.1mm Micro-text – Smaller than dot peen/imprint methods

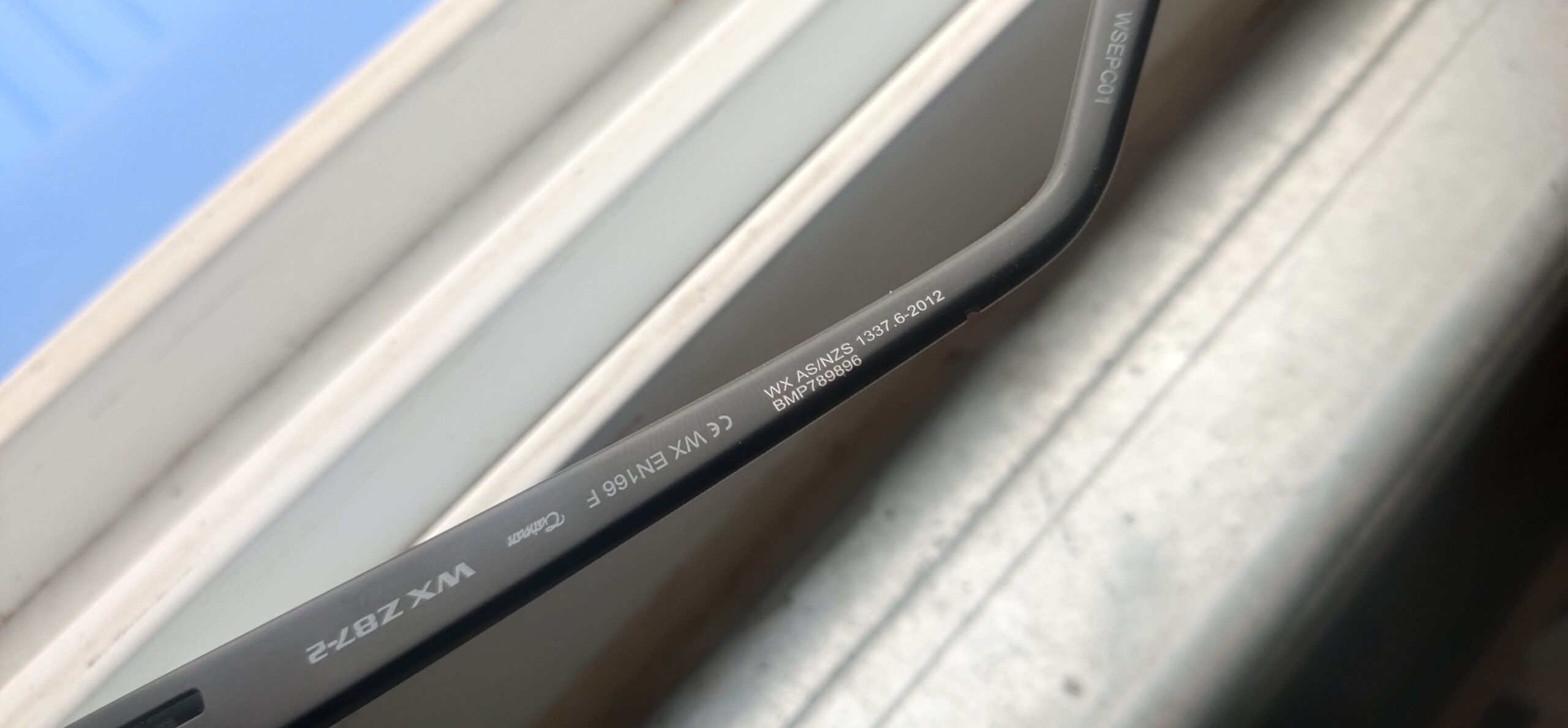

3. Eye-wear & Wearable (Visual Showcase)
| Material | Effect | Durability Test |
|---|---|---|
| Acetate Frames | Sub-surface foaming | 500+ flex cycles |
| Metal Hinges | Contrast annealing | Salt spray 120hs |
| Silicone Nose Pads | Molecular bonding | 10,000x abrasion |
🏭 Industry-Specific Problem Solvers
Electronics Manufacturing
Challenge: Marking fragile PCBs without damaging circuits
Our Solution:
✅ Anti-static 355nm beam (No ESD risk)
✅ 0.02mm micro-QR codes on IC chips
✅ Through-solder-mask marking without copper exposure
Proven Result: Reduced smartphone main board rejection rate by 63%
Pharmaceutical Packaging
Challenge: Creating tamper-proof marks on blister packs
Cold Marking Technology:
-
Invisible UV fluorescence – verifiable under black-light
-
Micro-perforation for child-safe packaging
-
FDA-compliant 21 CFR Part 11 data matrices
⚙️ 3D Internal Engraving System Explained
-
4x profit margins on crystal/acrylic gifts
-
No new operator training – uses existing interface
-
20-minute installation with plug-and-play kit
💰 ROI Calculation: Premium Applications
Crystal Engraving Business Model
| Item | Cost | Revenue |
|---|---|---|
| 3x3cm Crystal Cube | $0.85 (material) | $19.90 retail |
| Marking Time | 38 seconds | |
| Hourly Output | 94 units | $1,870/hr gross |
Equipment Payback Period: < 90 days at 50% capacity utilization
🎯 Why Top Industries Choose Our UV Systems
Competitive Edge Matrix
| Feature | Standard Market | Our Technology |
|---|---|---|
| Beam Homogeneity | ±15% energy deviation | ±3% Gaussian profile |
| Focus Control | Fixed Z-axis | Dynamic 3D auto focus |
| Software | Basic 2D patterns | AI-powered defect detection |
✅ Turnkey Solution Package
Everything You Need:
-

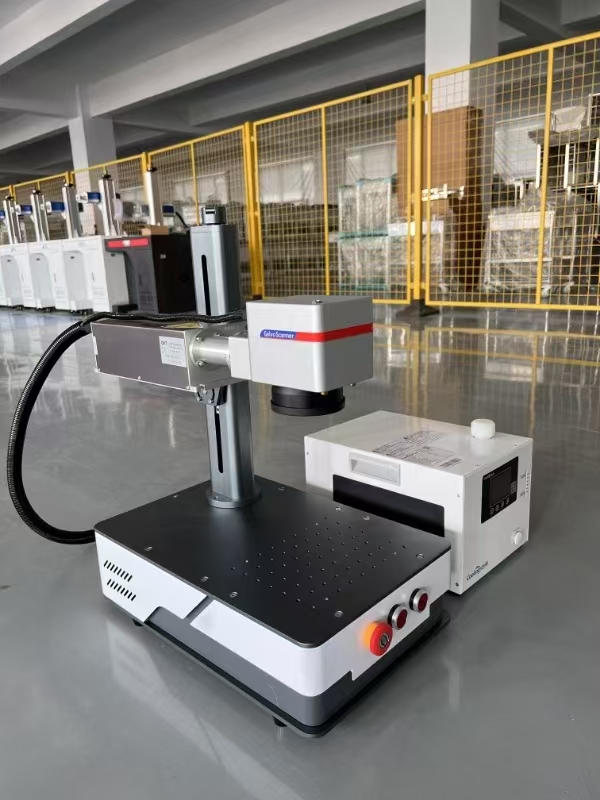

Base Unit: 3W/5W/10W UV laser source
-
3D Expansion: Internal engraving module
-
Material Kits: 50+ pre-tested parameter profiles
-
Compliance: FDA/CE/ISO documentation support
Free Sample Processing Campaign
➤ Send Your Material Get custom-marked samples in 72hs
➤ Request Application Demo Live Zoom session with our engineers
Searching for “UV laser for crystal engraving”, “medical device marking” or “cold laser etcher”? You’re speaking to the pioneers.
