Innovative Applications of 3D Fiber Laser Marking Machines in Metal Processing
I. Overview of 3D Fiber Laser Marking Machine Technology
3D fiber laser marking machines represent an upgrade from traditional 2D laser marking technology. Through dynamic focusing systems and precise three-dimensional control systems, they achieve high-quality marking on complex curved surfaces. Their core advantages include:
- Dynamic focal length adjustment: Automatically adapts to height variations of workpiece surfaces to maintain optimal focus
- Three-dimensional path planning: Precisely controls laser movement trajectories in X, Y, and Z dimensions
- Accurate energy control: Adjusts laser power and pulse width according to different processing requirements
- Wide material adaptability: Particularly suitable for processing various metal materials
II. Applications in Metal Deep Engraving
Deep engraving is a significant application of 3D fiber laser marking machines in metal processing, typically referring to engraving processes with depths greater than 0.1mm.
Technical Characteristics:
- High depth precision: Achieves engraving depths ranging from 0.1-3mm
- Edge clarity: Features steep sidewalls with strong detail representation
- Efficiency advantages: Over 50% faster than mechanical engraving
Typical Application Cases:
- Mold numbering and identification
- Metal seal production
- Permanent marking on industrial components
- Tool branding and parameter engraving

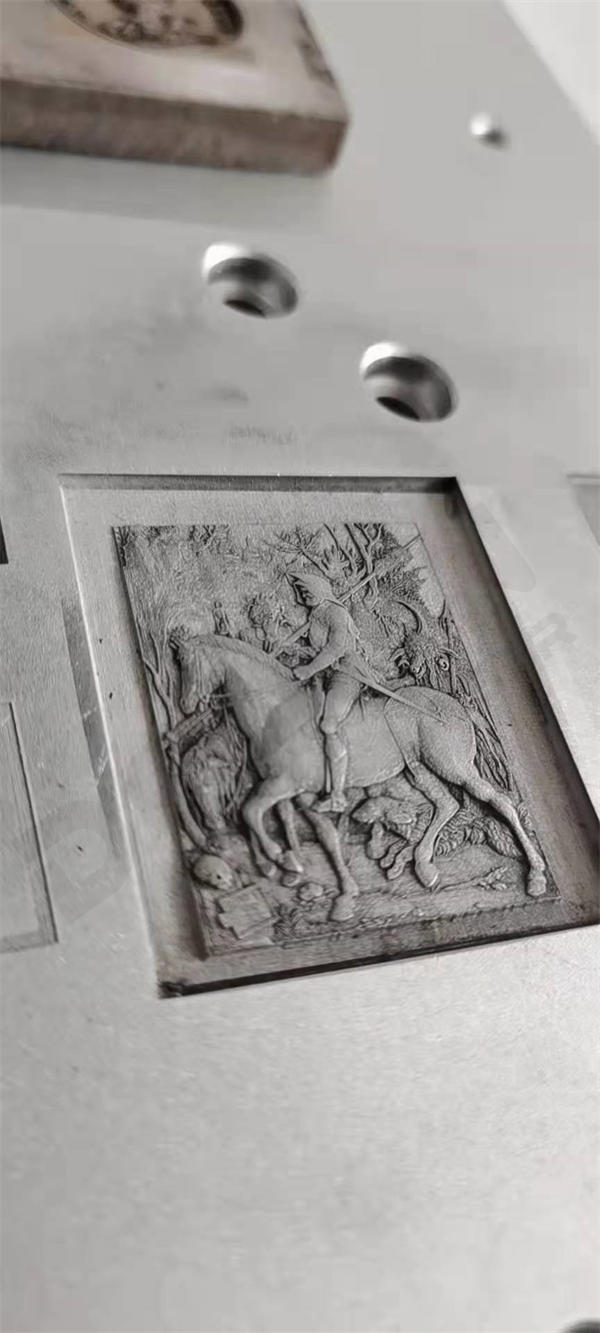

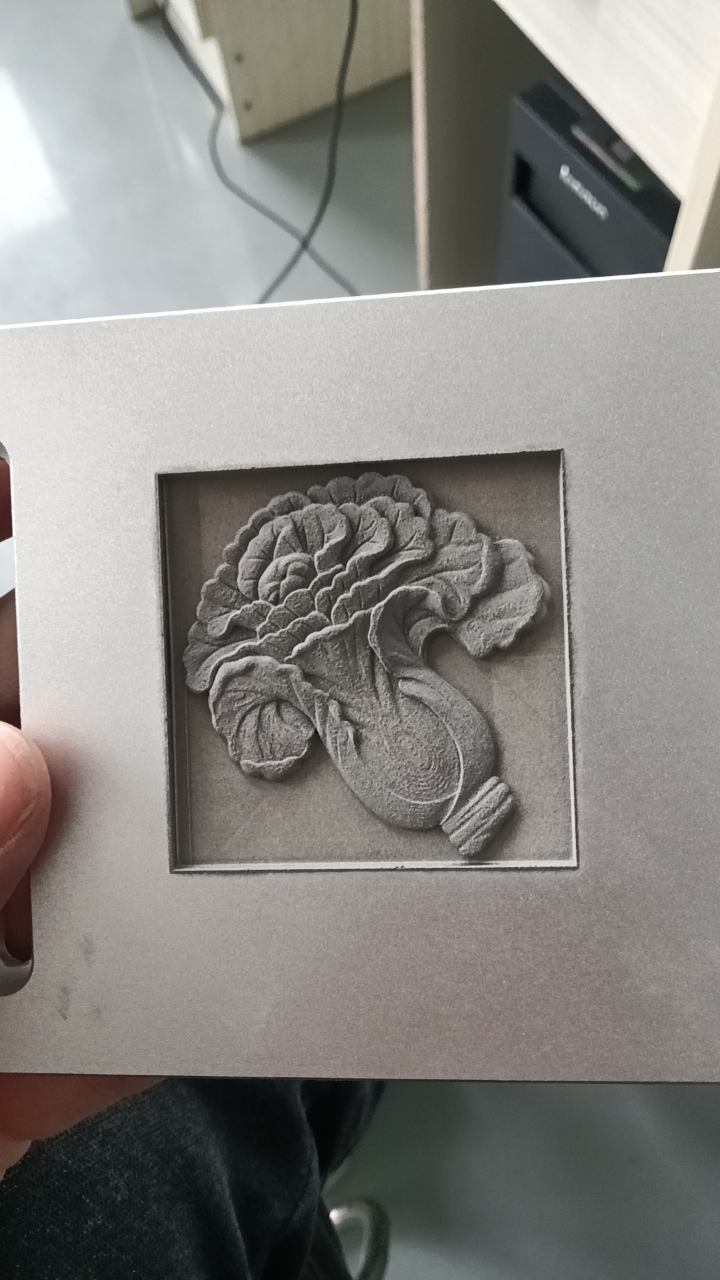

III. Metal Relief Carving Process
Metal relief carving creates three-dimensional visual effects by controlling engraving depths in different areas, serving as an important value-added process for products.
Key Technical Implementation Points:
- Grayscale image conversion technology:
- Transforms 2D images into depth information
- 256 grayscale levels correspond to different engraving depths
- Achieves precise mapping through professional software
- Layered processing strategy:
- Roughing layer: Rapid material removal
- Finishing layer: Detail refinement
- Polishing layer: Surface smoothness improvement
- Surface treatment options:
- Matte finish: Medium power with higher frequency
- Glossy finish: Low power with multiple fine passes
- Colored effects: Creates oxidation color changes through parameter control
Industry Applications:
- Precious metal artwork creation
- Commemorative coin and medal production
- High-end electronic product decoration
- Luxury goods metal component processing
IV. Curved Surface Marking Solutions for Metals
Traditional laser equipment struggles to achieve uniform marking on curved surfaces. 3D fiber laser marking machines address this challenge through the following technological innovations:
Core Technological Breakthroughs:
- Real-time focal length compensation system:
- Dynamically adjusts distance between laser head and workpiece
- Maintains constant spot size
- Ensures consistent energy density
- 3D surface following technology:
- Uses CAD models or 3D scan data
- Automatically generates optimal processing paths
- Achieves complex surface adaptation
- Multi-axis coordinated control:
- Integrates rotary and tilt axes
- Enables 360° omnidirectional processing
- Typical configuration: Galvo + rotary stage + Z-axis
Practical Application Advantages:
- Seamless continuous marking on cylindrical surfaces
- Clear identification on irregularly shaped components
- Uniform patterns on spherical and other complex geometries
- Significantly improves product yield (up to 99%+)
V. Metal Material Processing Optimization Strategies
Different metal materials react distinctly to laser processing, requiring targeted parameter optimization:
Process Optimization Recommendations:
- Pre-treatment: Clean surface oils; apply blackening treatment when necessary to improve absorption
- Parameter testing: Conduct sample tests when changing materials
- Post-processing: Select sandblasting, polishing, or passivation as needed
- Environmental protection: Equip appropriate fume extraction and dust removal systems
VI. Industry Application Prospects and Development Trends
3D fiber laser marking machines are experiencing rapid development in the metal processing field:
Current Main Application Areas:
- Aerospace: Component traceability marking
- Automotive manufacturing: VIN codes, part numbering
- Electronics: Precision component marking
- Jewelry: Personalized customization
- Tool manufacturing: Brand and parameter marking
Future Technological Development Directions:
- Intelligent upgrades:
- AI-powered parameter optimization systems
- Automatic defect detection
- Smart maintenance alerts
- Hybrid processing technologies:
- Laser + mechanical composite processing
- Multi-wavelength composite laser sources
- Combined additive and subtractive manufacturing
- Green manufacturing:
- Over 30% reduction in energy consumption
- Waste material recovery systems
- Eco-friendly assist gas applications
- Ultra-precision processing:
- Sub-micron processing accuracy
- Nanostructure fabrication capability
- Atomic-level surface treatment
